DCS-HDR-01-06

  • In stock, ready to ship
  • Inventory on the way
Regular price$599.99
/
Shipping calculated at checkout.

About This Item

  • Optimized Tri-Y 4-2-1 Design
  • Compatible with K20 and K24 Swaps
  • Fits 92-00 Civic, 94-01 Integra, & 93-97 Del Sol

DC Sports K Swap 4-2-1 Header - EG/EK/DC/Del Sol

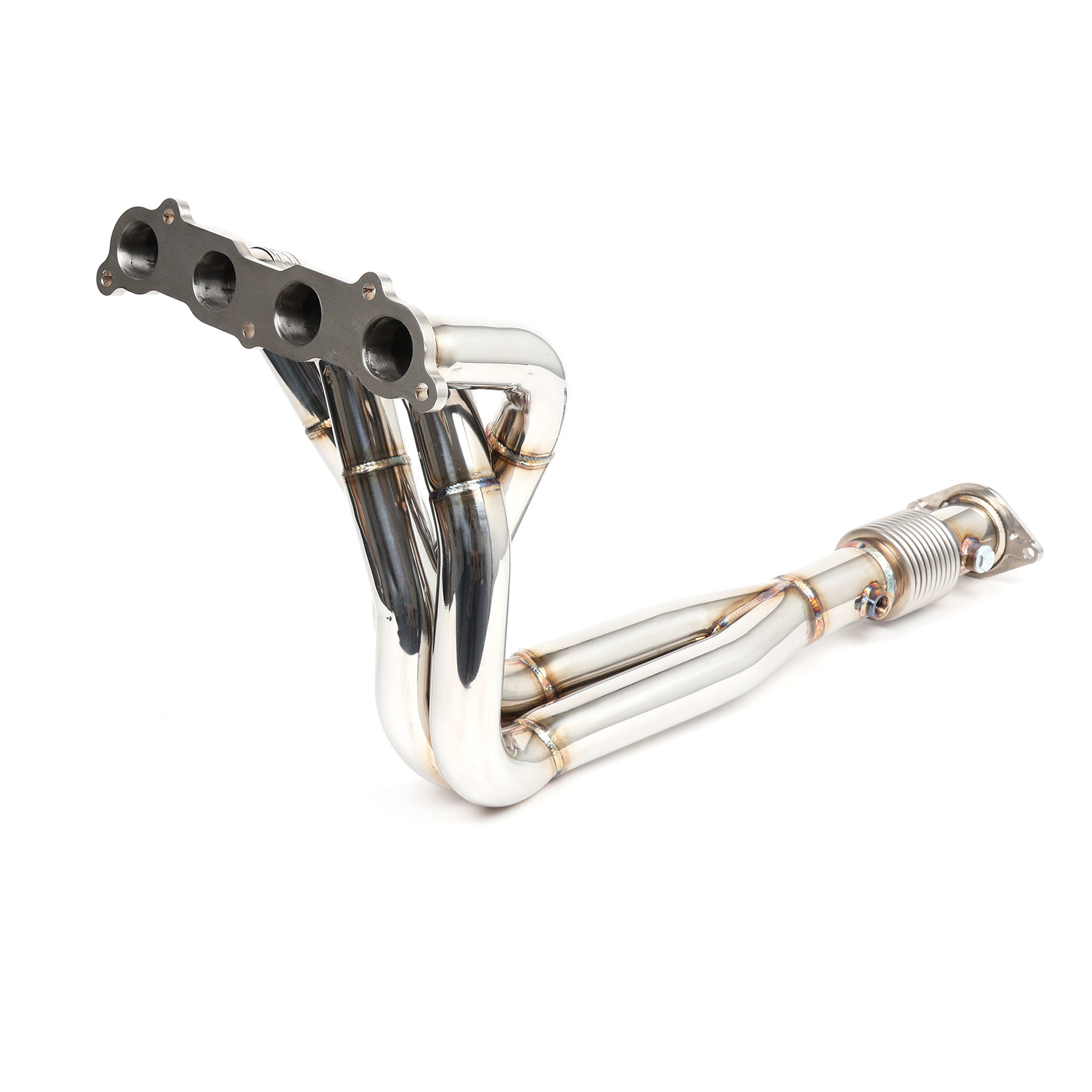

Introducing the DC Sports K-Swap 4-2-1 Header – a meticulously engineered solution for Honda enthusiasts seeking to maximize the potential of their K20 or K24 engine swaps. This header is designed not only to address common K-swap installation challenges but also to deliver usable power gains. With its one-piece 304 stainless design, CNC-machined flanges, and equal-length Tri-Y layout, it ensures optimal exhaust flow and performance.

VEHICLE FITMENT AND COMPATIBILITY

Engineered to fit 1992-2000 Honda Civics, 1993-1997 Honda Del Sol, and 1994-2001 Acura Integras, this header is compatible with both K20 and K24 engine swaps using Hasport or Innovative mount kits. Hasport mounts accommodate two height positions, while the header works perfectly in both. For Innovative mounts with forward and back positions, the header optimizes performance in the most forward configuration. See the fitment section below for exact fitments.

HEADER DESIGN AND PULSE TIMING

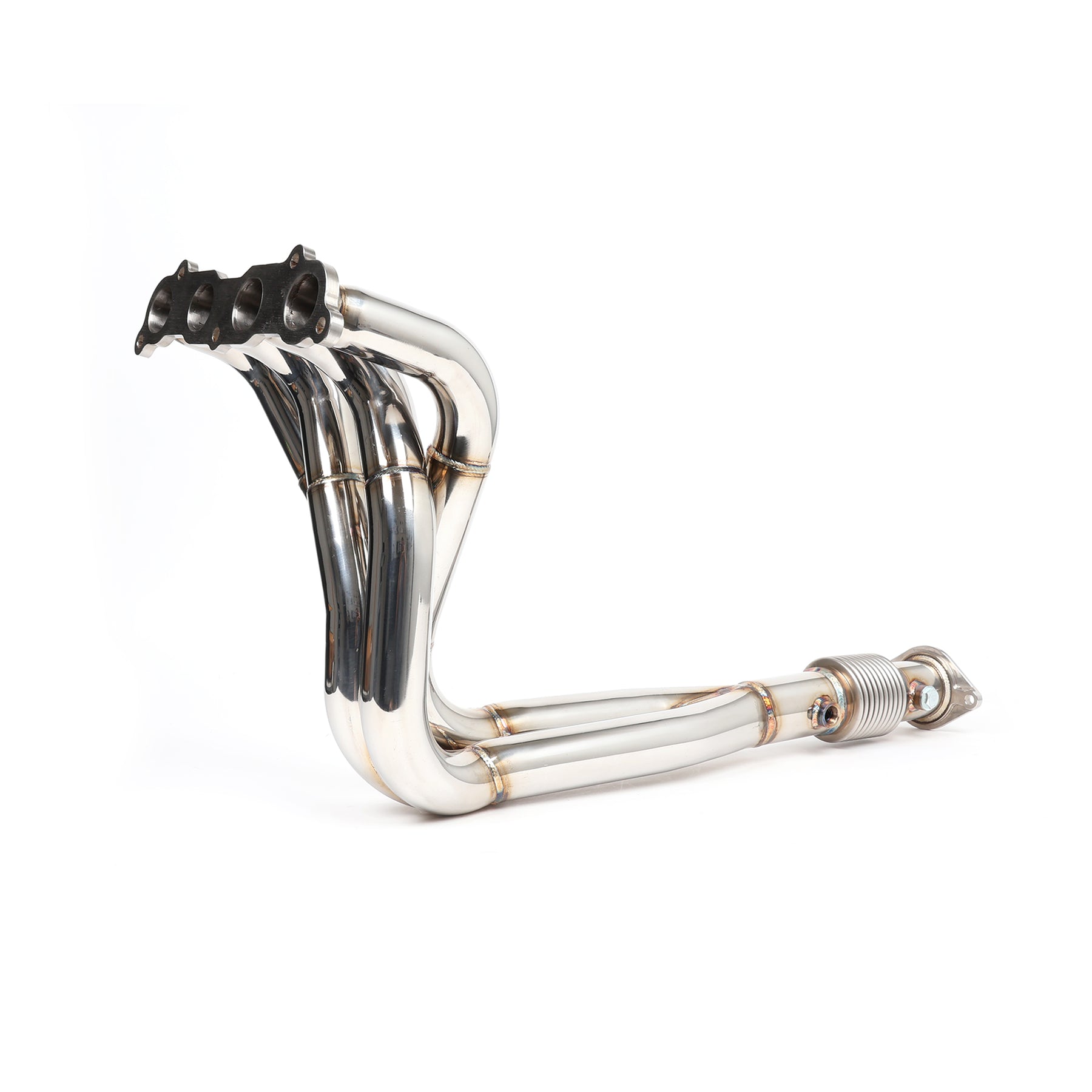

The equal-length 4-2-1 layout mirrors Honda's original engine design, pairing cylinders 1-4 and 2-3 to match the 1-3-4-2 firing order. This configuration maintains consistent 360-degree spacing across the 720-degree cycle, allowing the low-pressure wave from one cylinder to reach the next during overlap. The result is enhanced scavenging, reduced exhaust reversion, and a more consistent torque curve.

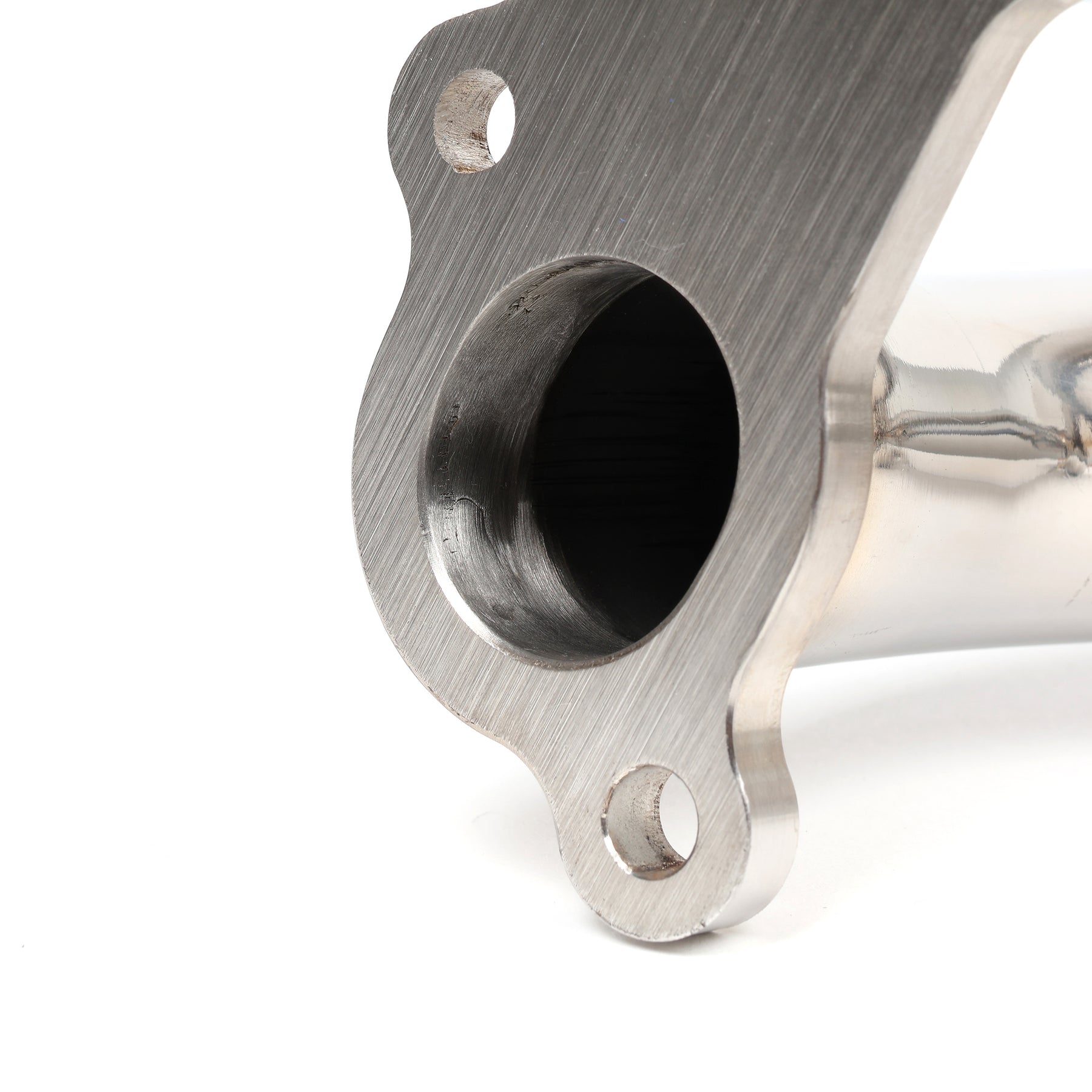

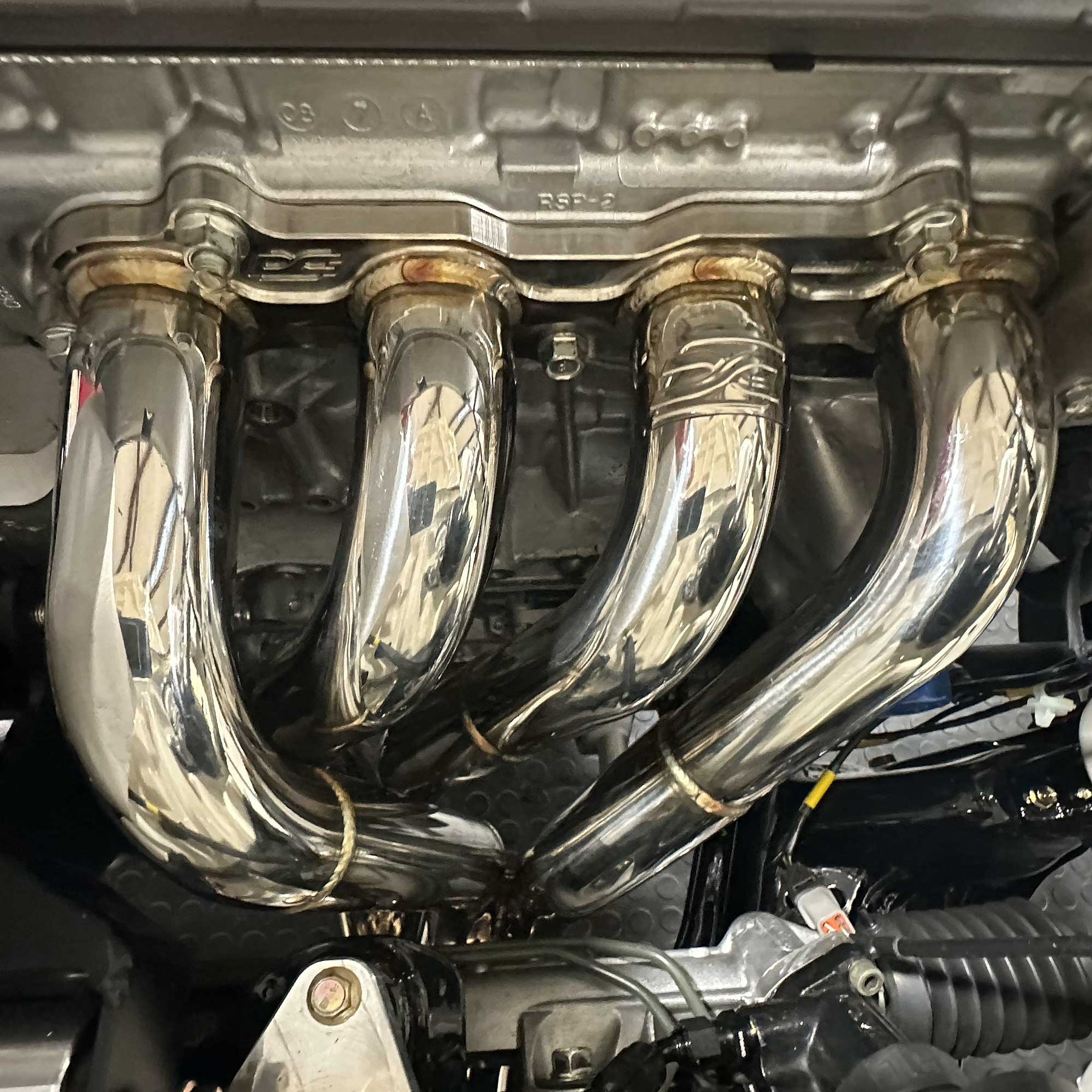

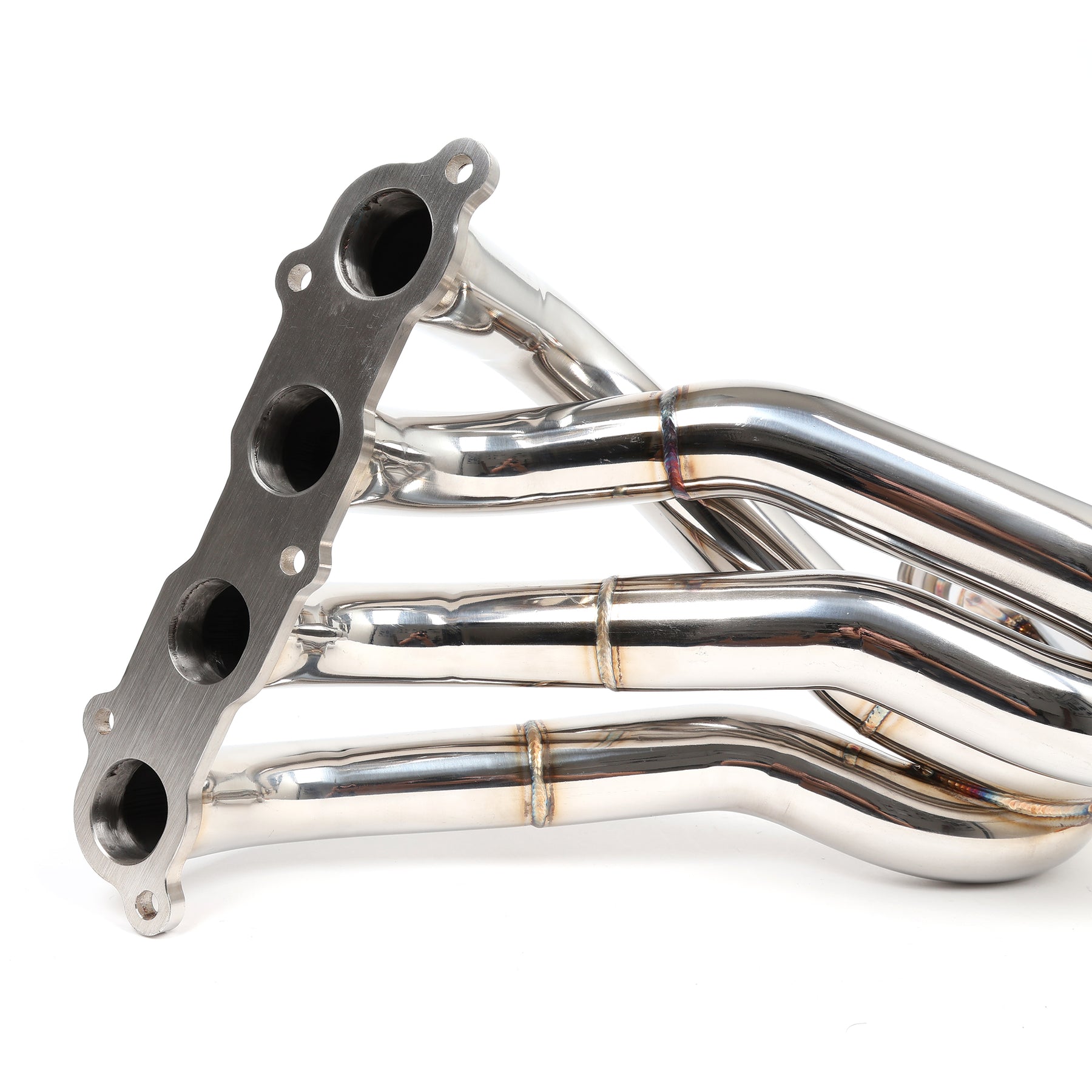

At the head, we precisely opened the flange ports to match the PRC Type R oval profile. The 304 stainless steel head flange starts as a 1/2-inch plate and is CNC-machined down to 3/8 inches in low-stress areas to reduce weight while maintaining flatness and rigidity. Strategically reinforced zones remain at 1/2 inch to prevent warping and ensure a tight seal.

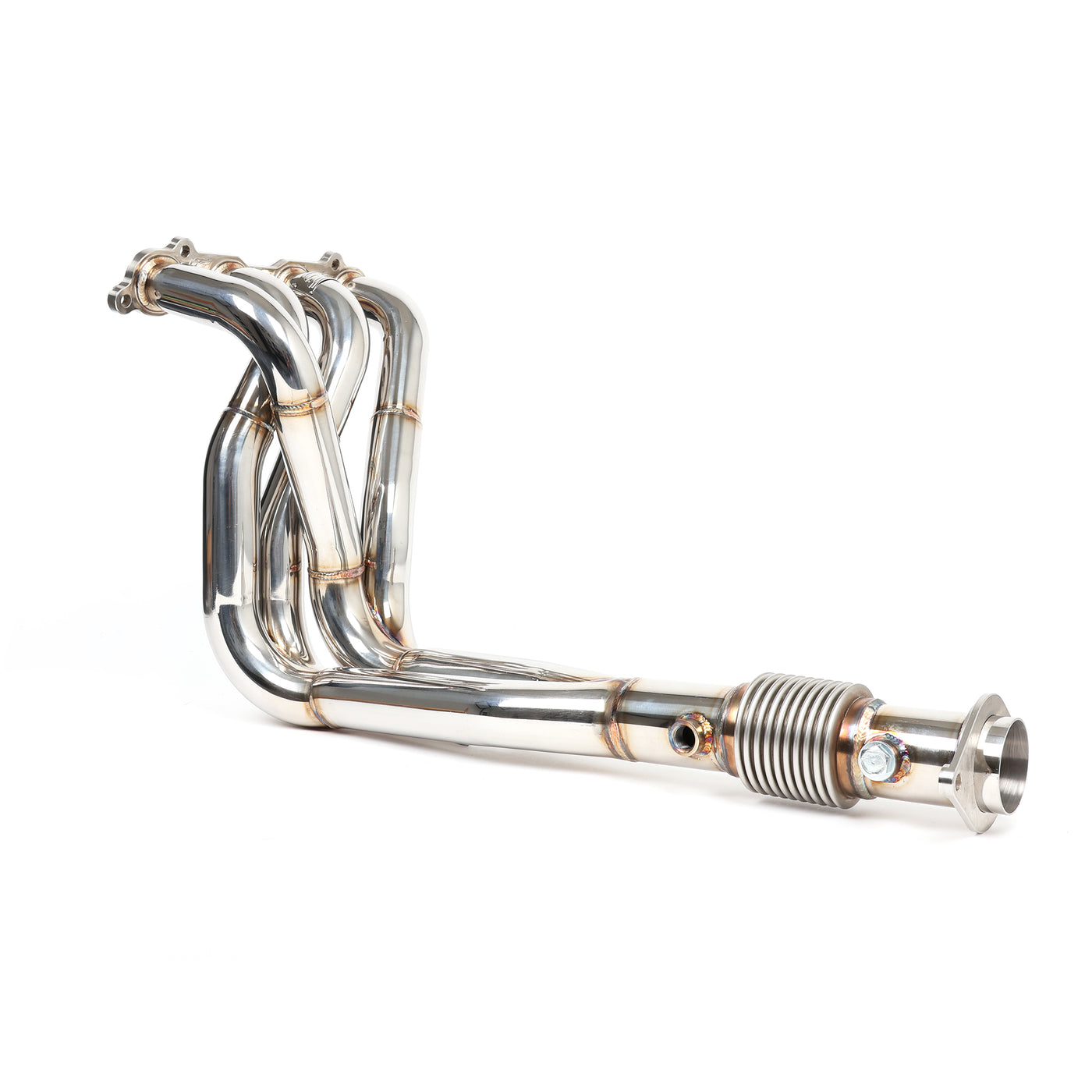

RUNNERS, WELDS, AND COLLECTOR GEOMETRY

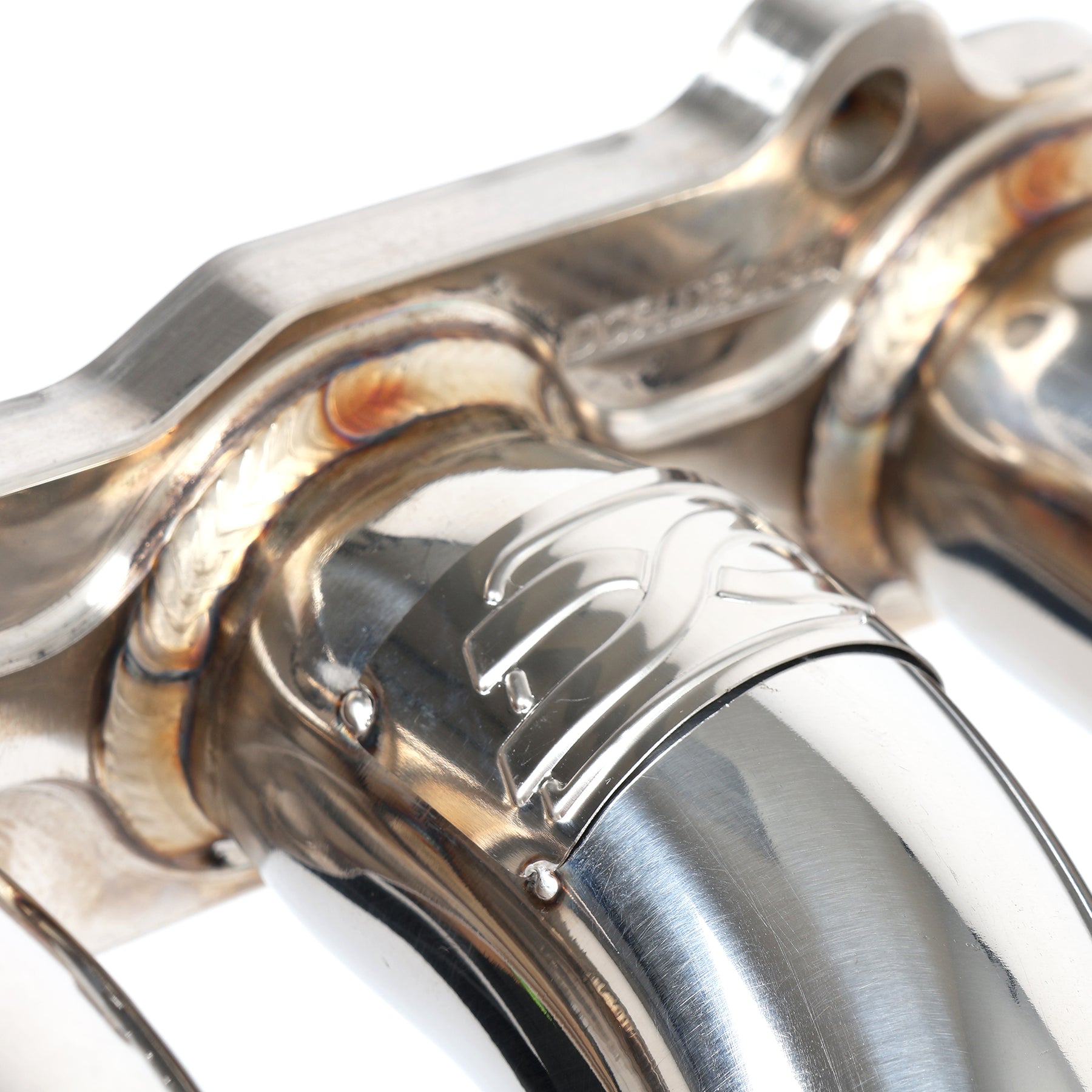

Each primary runner is precision mandrel-bent from 304 stainless steel, featuring a 1.5-millimeter wall thickness. The runners are flared to match the PRC oval port shape and seated approximately one-quarter inch into the CNC-machined flange. We've implemented full internal and external flange welds to maximize penetration, ensure optimal sealing, and minimize potential cracking during repeated heat cycles.

The runner sizing follows a carefully calculated stepped design to balance velocity and flow:

  • Primaries start at 48mm
  • Step to 50.8mm
  • Merge at roughly 15 degrees into 54mm secondaries
  • Finish with a 7-degree transition into a 63.5mm 2.5-inch collector
Each dimensional and angular specification is precisely calculated to optimize exhaust scavenging and overall system efficiency.

OUTLET LOCATION AND O2 SENSOR PLACEMENT

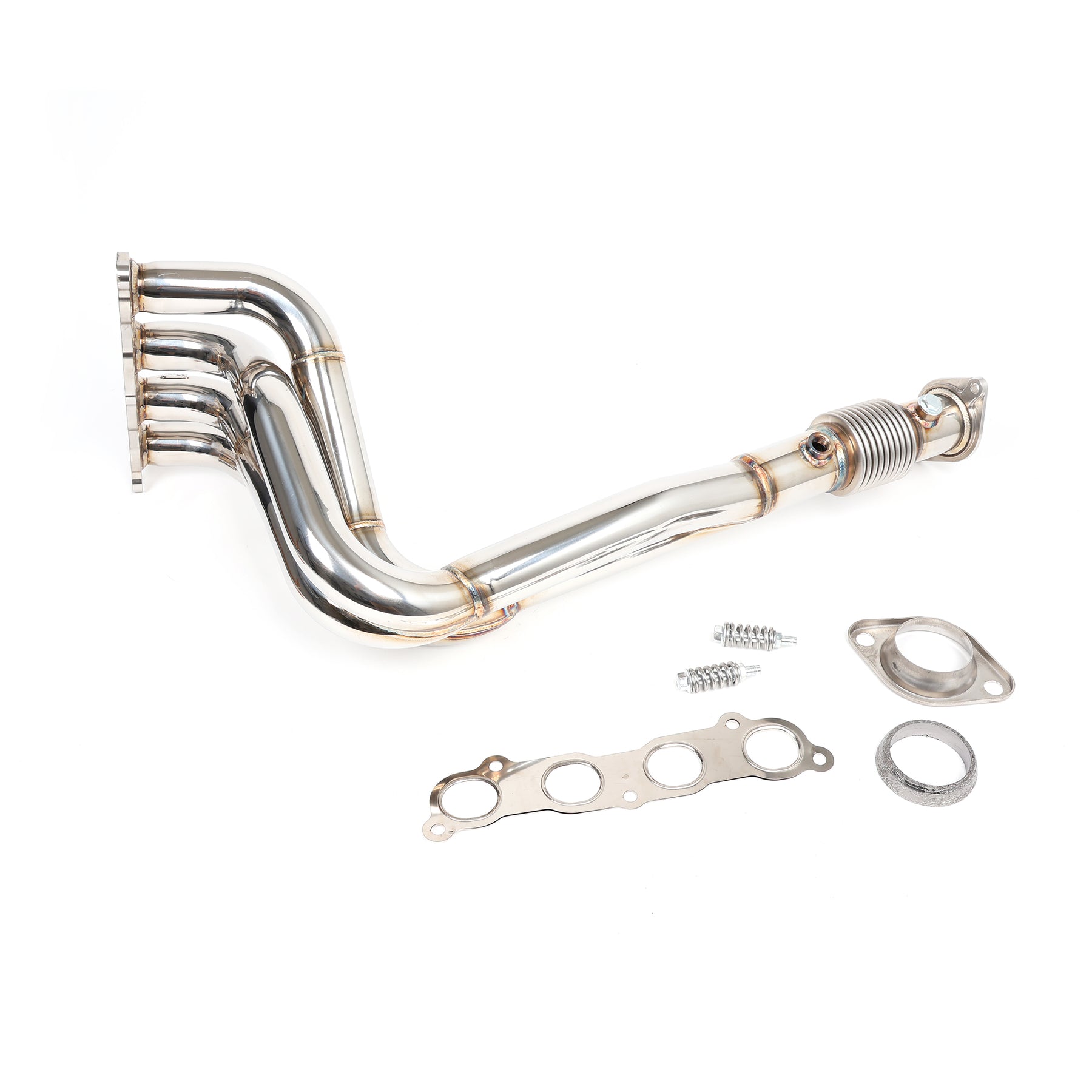

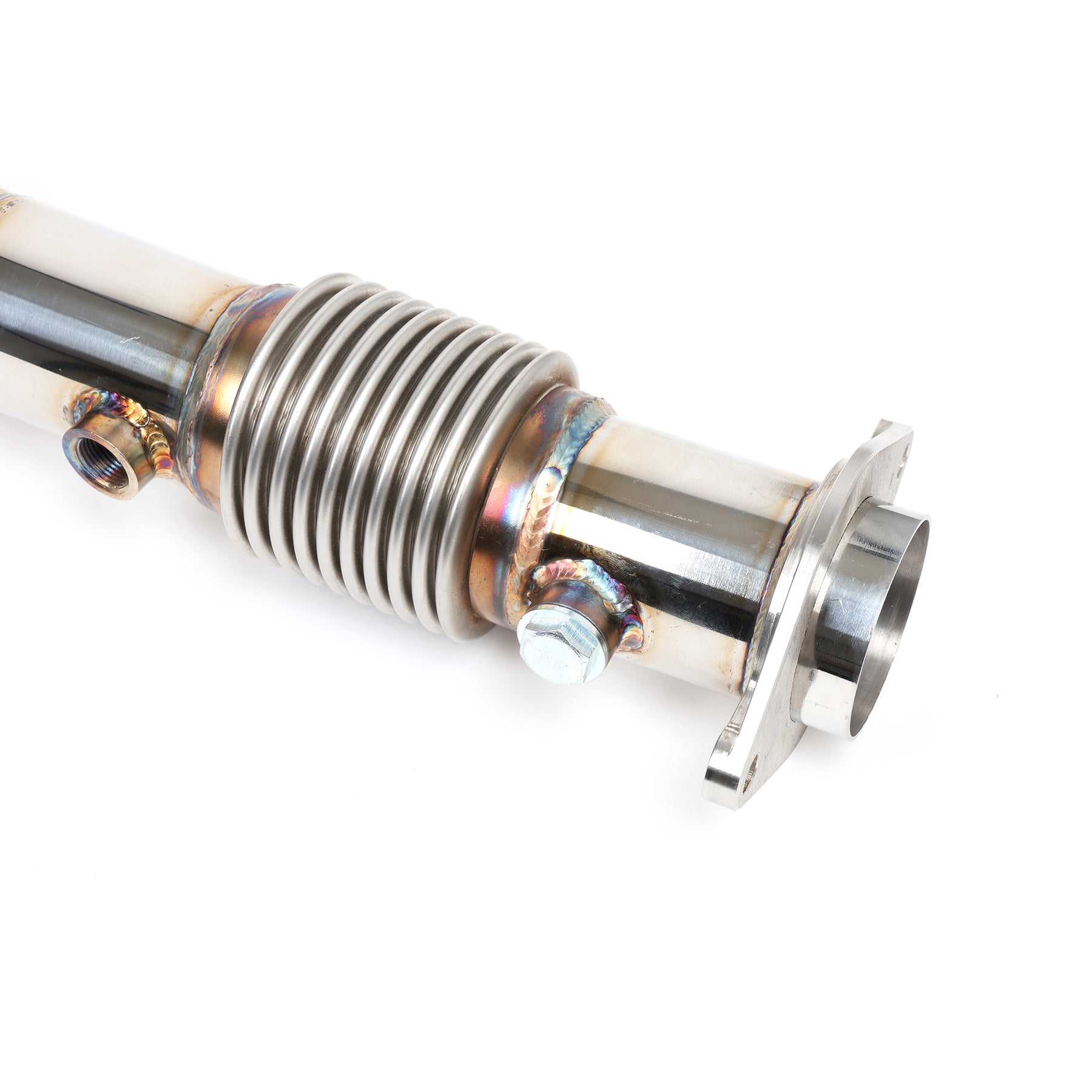

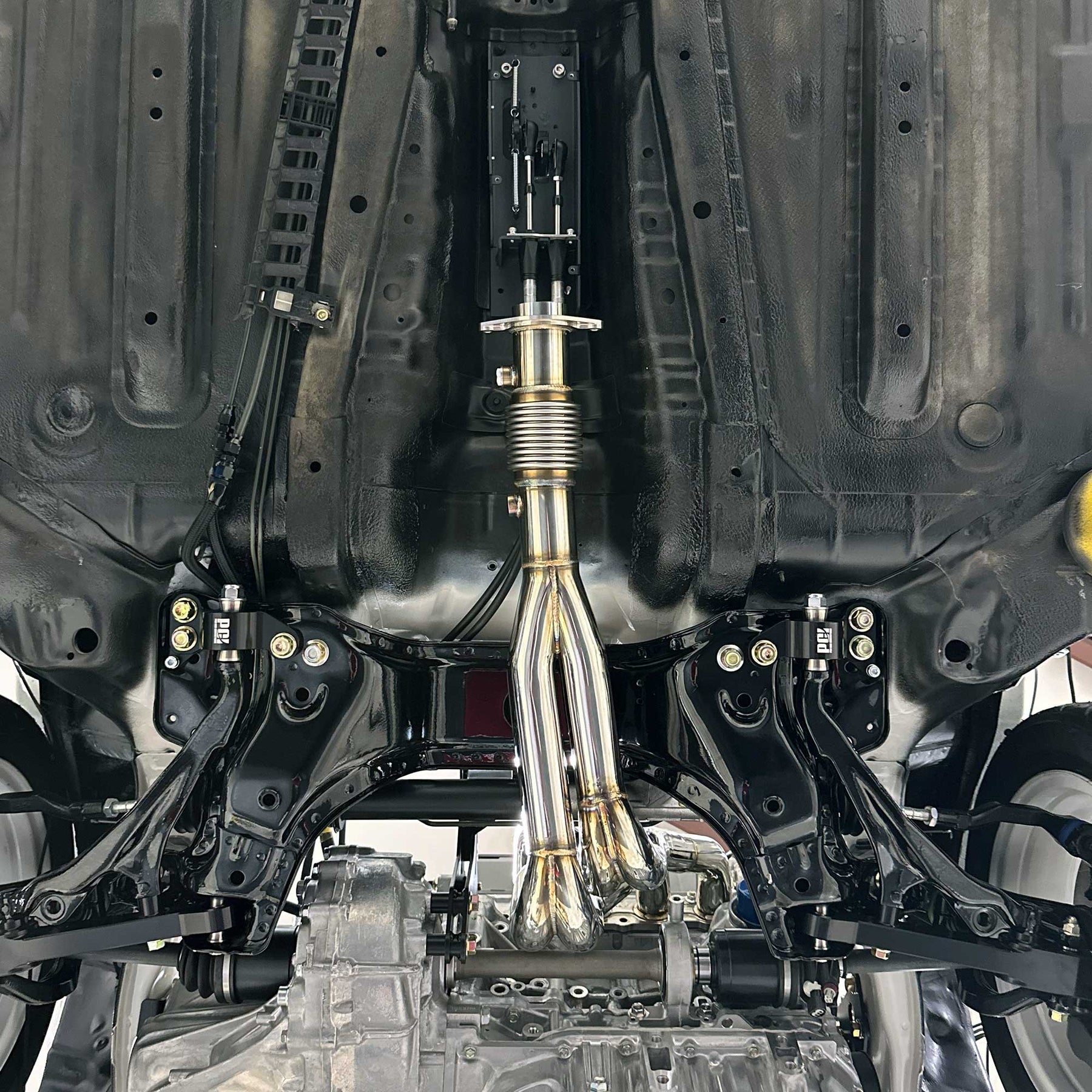

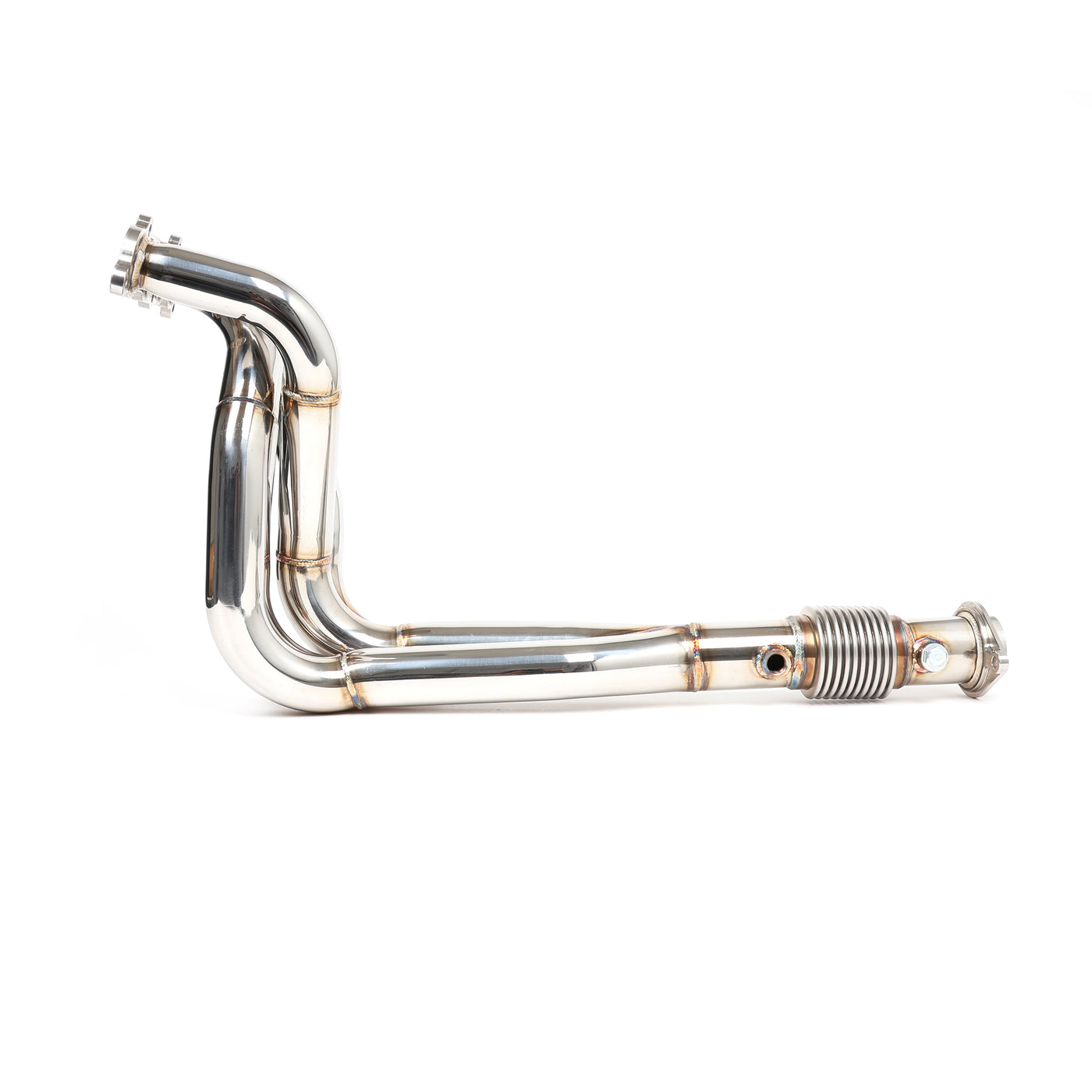

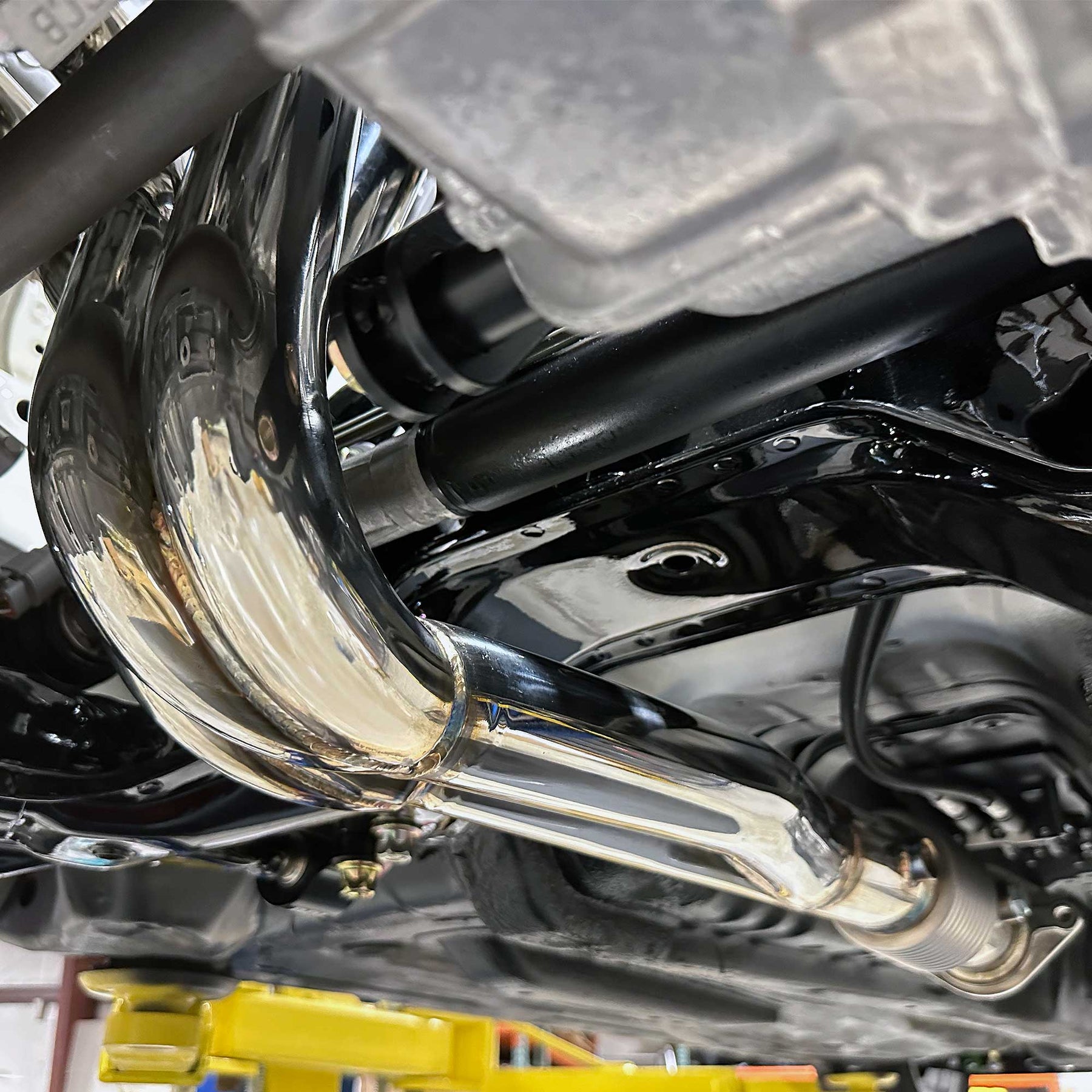

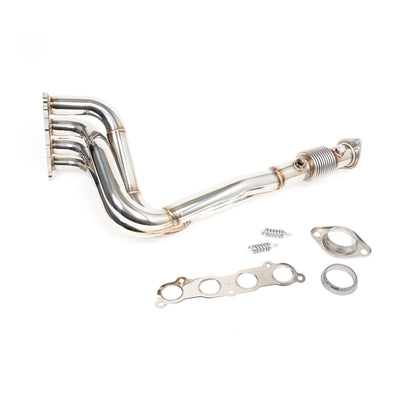

The outlet is positioned near the tunnel centerline, taking into consideration common K swap shifters and cables. Routing is planned so everything fits without subframe hammering or complicated mid pipes, and the header lands where it should while preserving ground clearance for lowered cars. A 2.5-inch stainless flex bellow between the header and collector absorbs engine movement and protects the welds, and allows you to easily weld it up to your exhaust of choice with the included two-bolt flange that comes in the box.

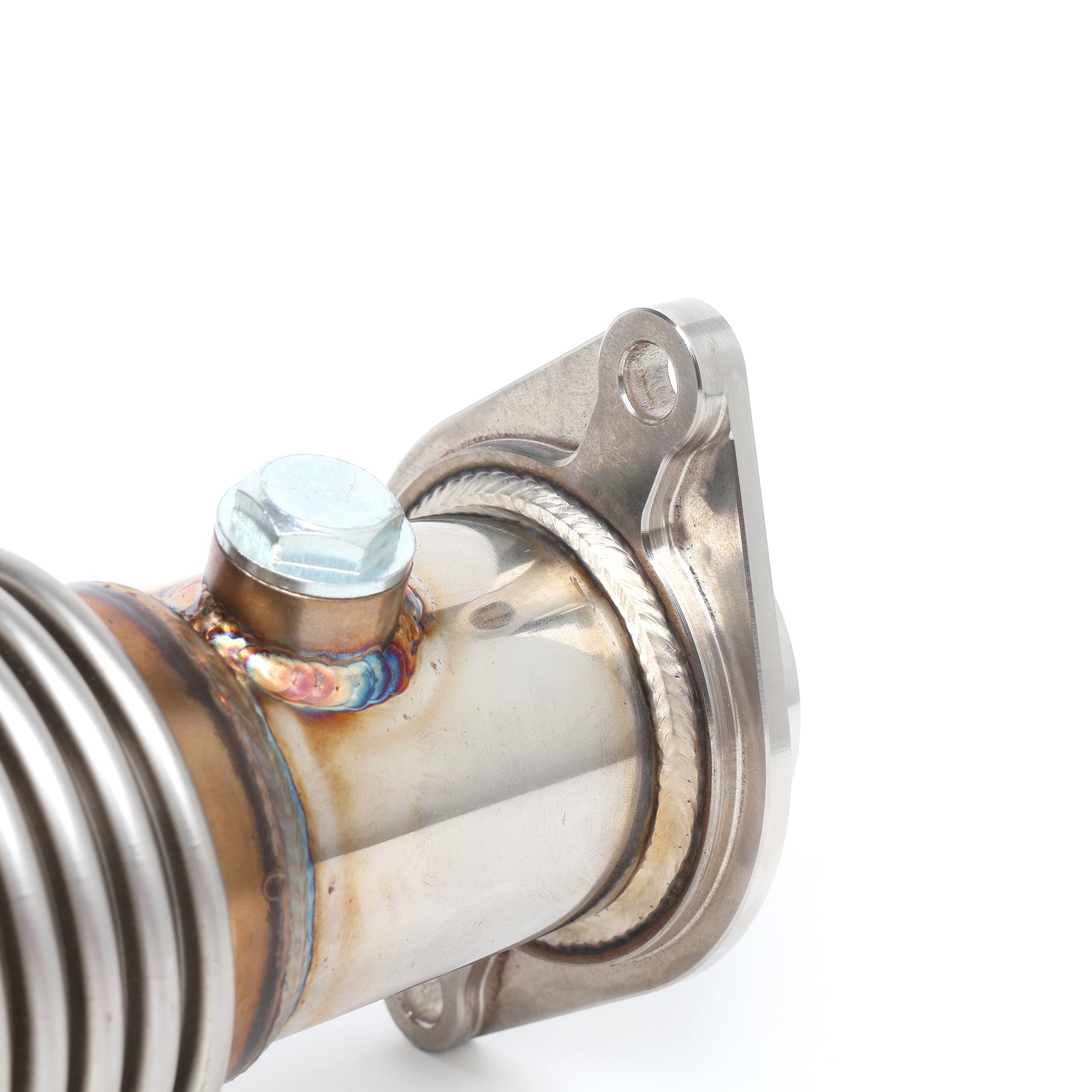

Lastly, many swap headers install a single O2 bung in a position that places the end of the O2 sensor where it can rub against the floorpan. We include two oxygen sensor bungs and position them to clear the chassis and protect wiring. This allows you to run both the OEM primary and secondary sensors, or you can plug the second port and use it for quick wideband access at the dyno. The goal is simple: remove installation issues for a clean and easy install.

BOTTOM LINE

If you're looking for a K swap header that combines performance, compatibility, and ease of installation, this is it. Whether you’re daily driving or hitting the track, this header will help you get the most out of your K20 or K24 engine swap.
