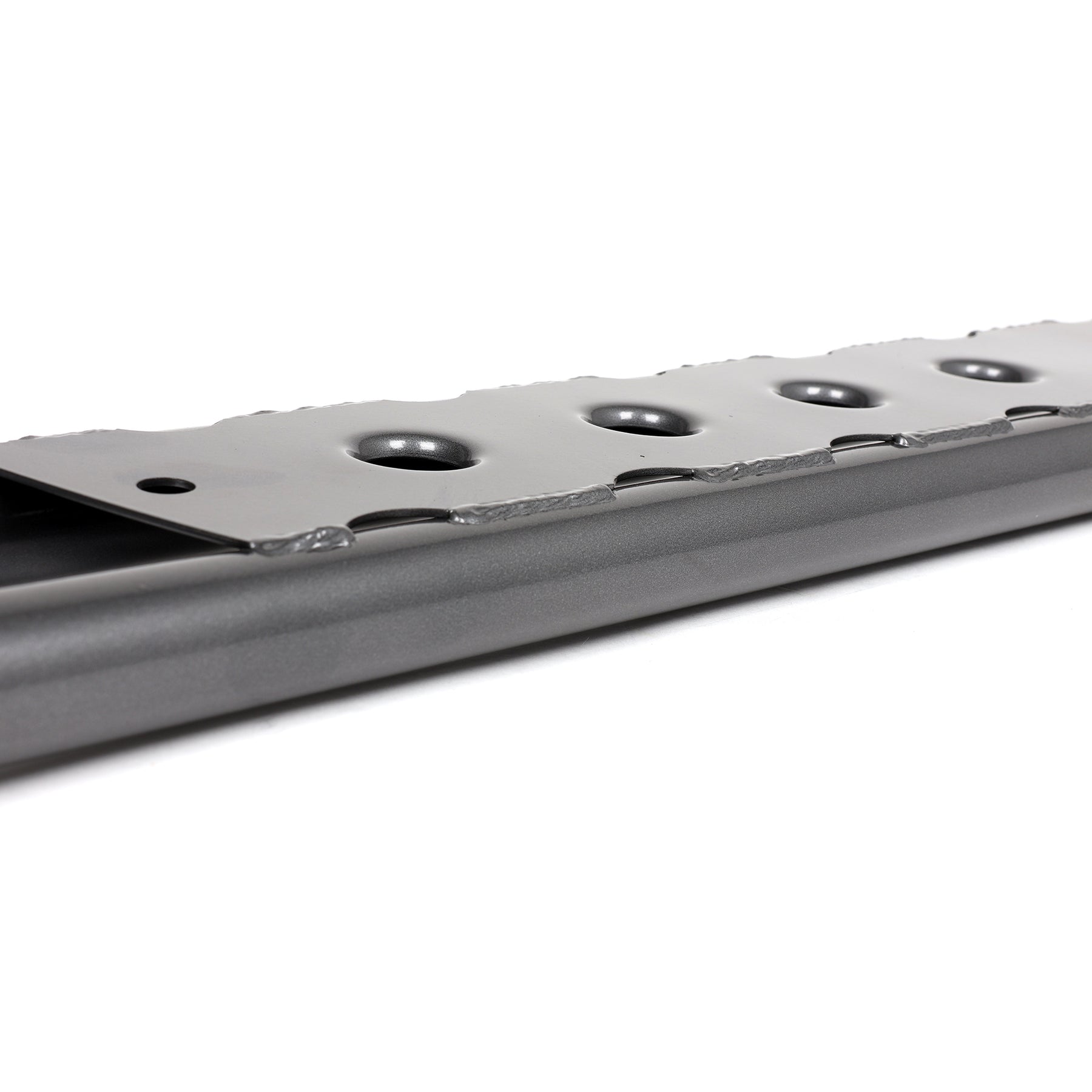

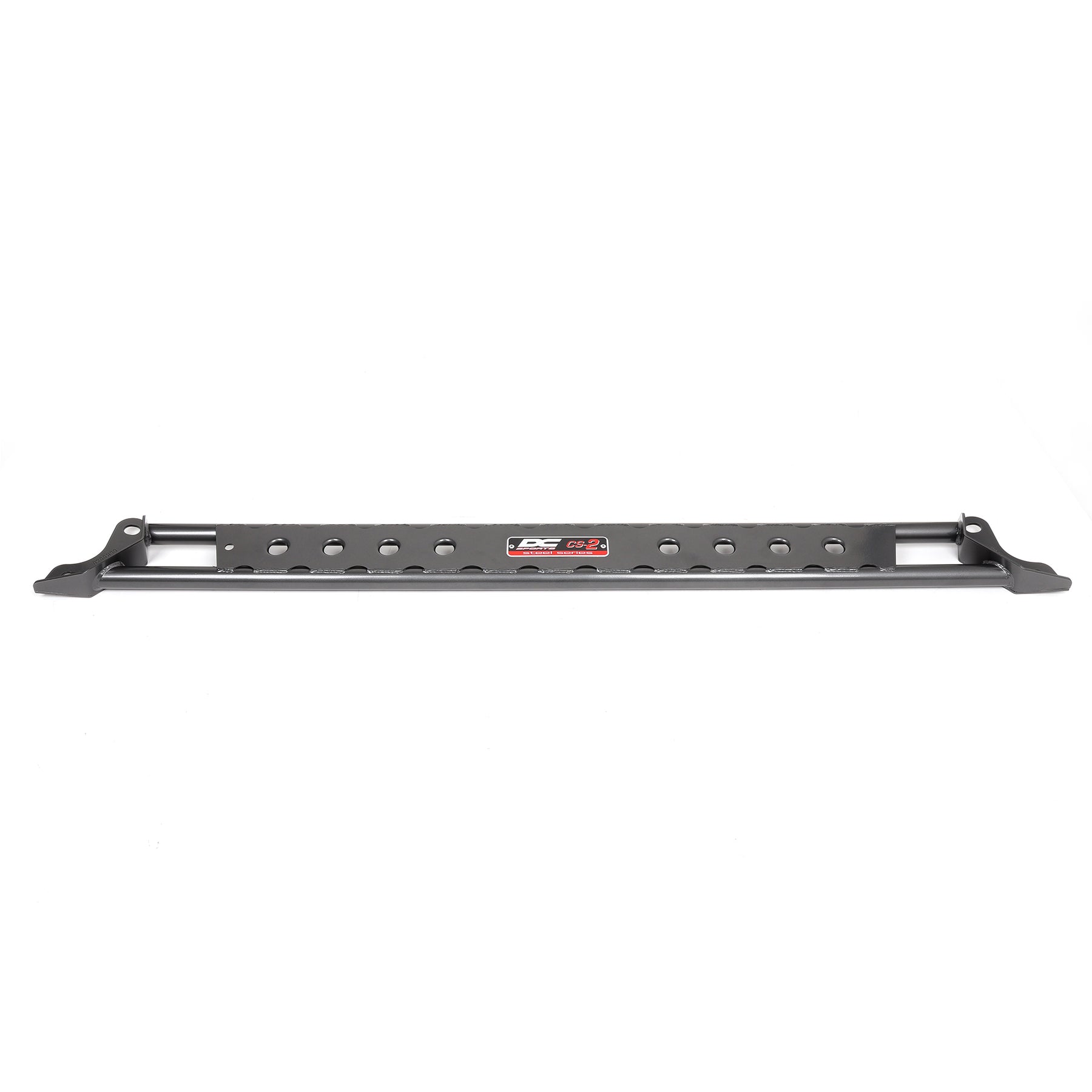

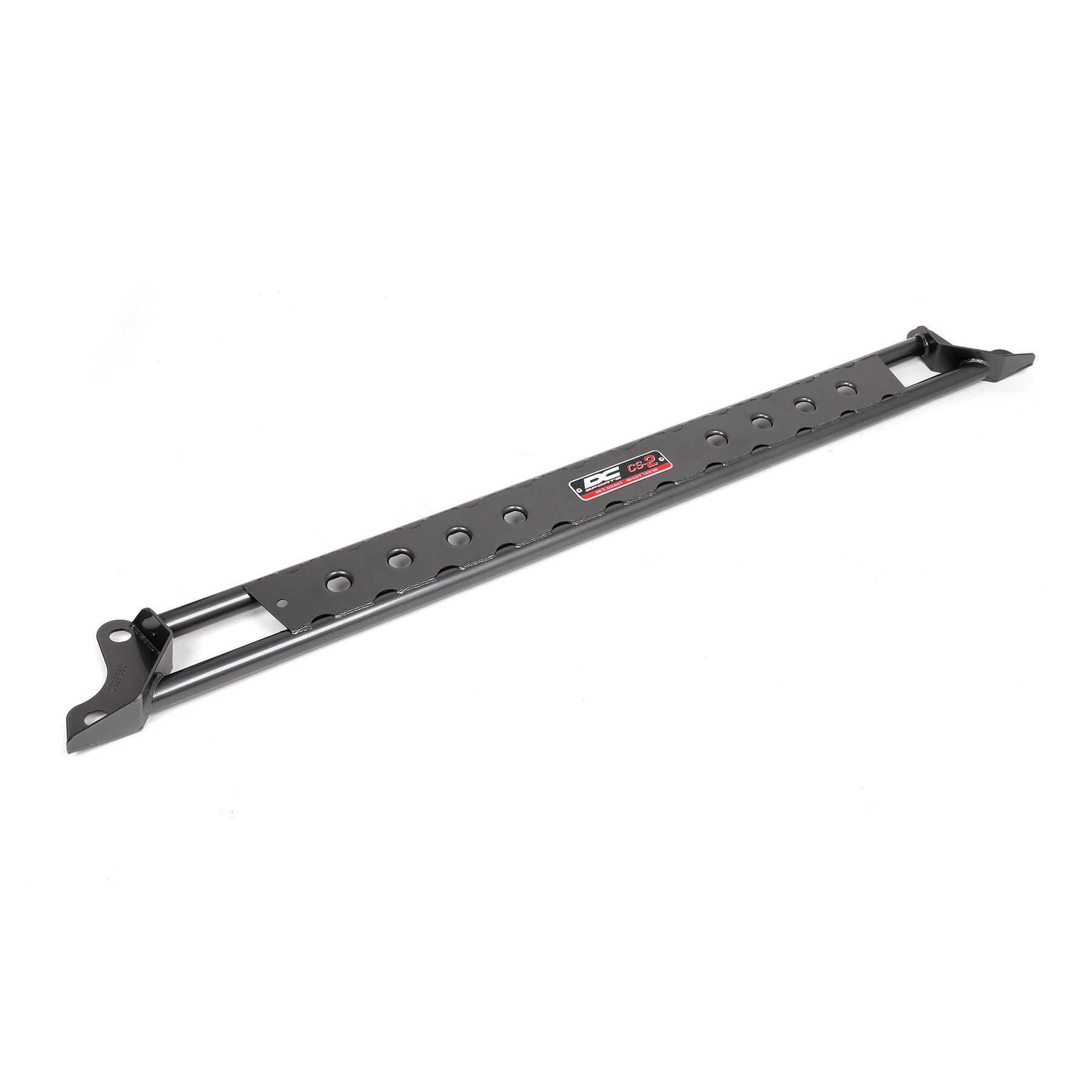

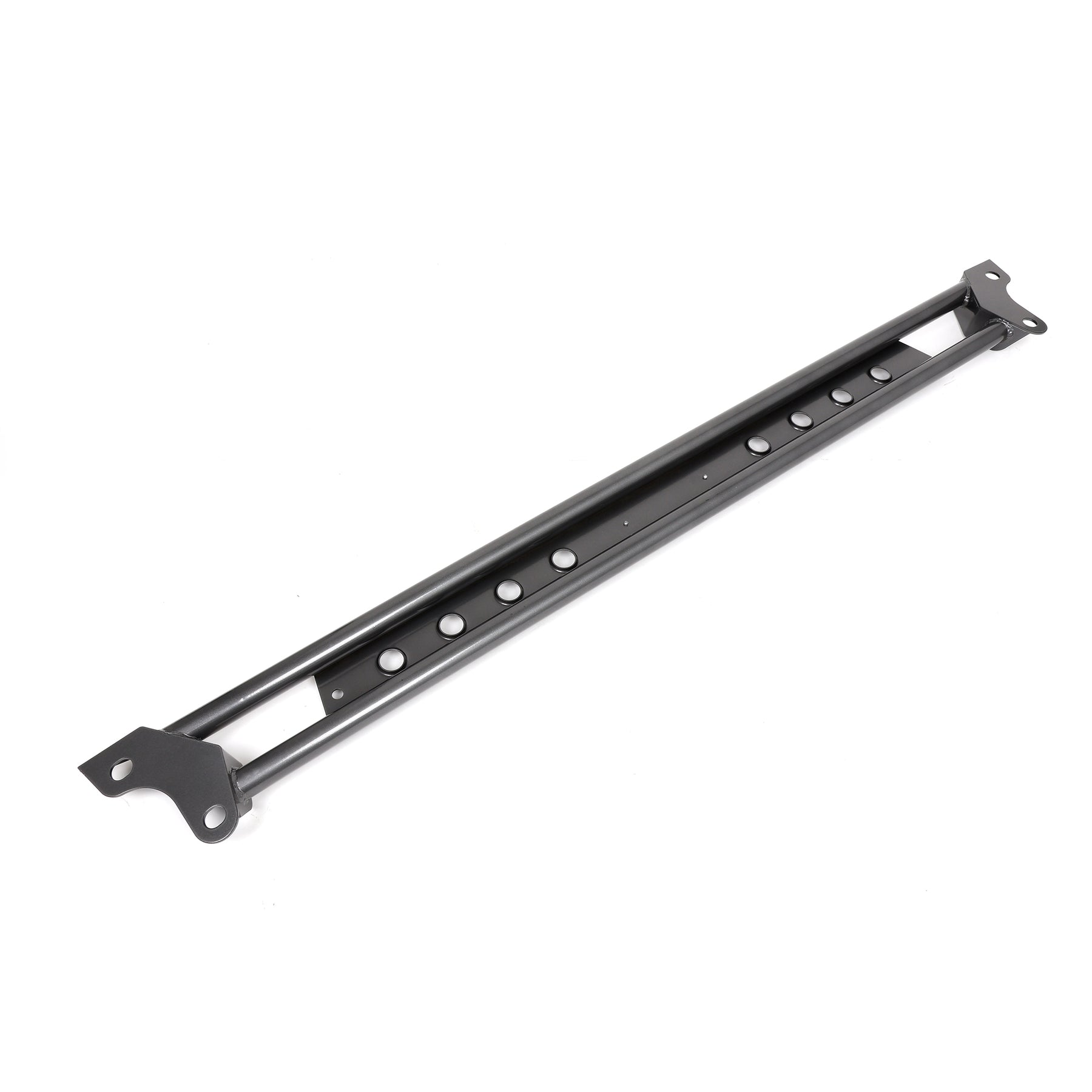

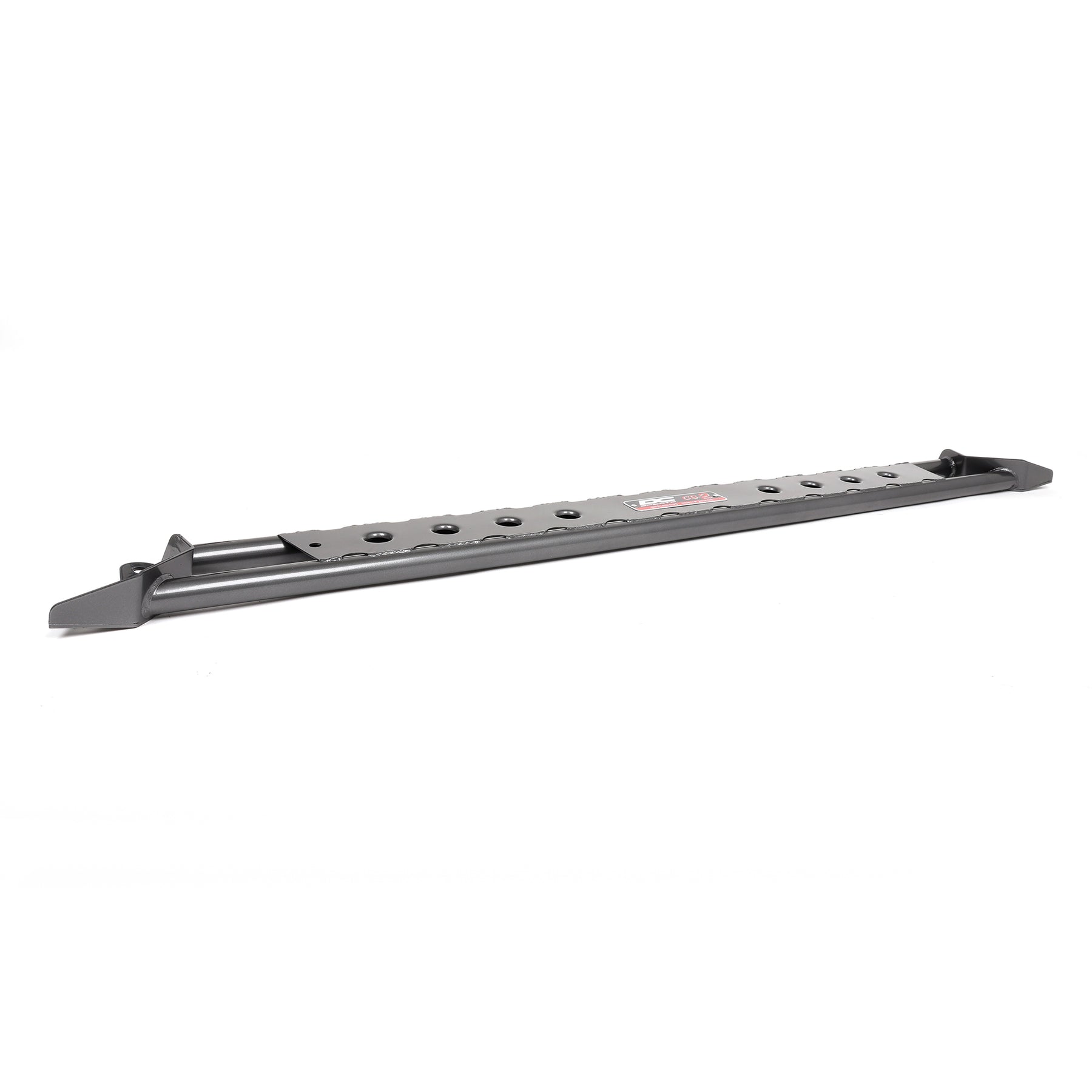

DC Sports Front Strut Bar (15-20 Acura TLX)

CSB5530

  • In stock, ready to ship
  • Inventory on the way
Regular price $149.99 Sale price$142.50 Save 5%
/
Shipping calculated at checkout.

About This Item

  • Improved Handling
  • Reduces Chassis Flex
  • Distributes Lateral Load To Both Front Strut Towers

Install Guide

View Install Guide HERE 1. With the car set on the ground, remove four (4) 10 mm nuts securing OEM strut reinforcement brace.
2. Remove two (2) 8 mm nuts securing strut brace to the strut mount.
3. Remove the OEM strut reinforcement brace. STEPS 4&5 ONLY APPLY TO 4CYL APPLICATIONS
4. Loosen clamp holding down intake sound tube and gently lift to remove.
5. Insert provided plug and retighten the oem clamp.
6. Locate the bracket that holds the AC line to the passenger shock tower. Remove the one (1) 6mm bolt. This bold will be reused.
7. Install strut bar
8. Tighten all four (4) 10mm nuts (Torque: 4.4 kg-m, 32 lb-ft).
9. Tighten down two (2) 8mm nuts (Torque to 28lb-ft)
10. Using provide bracket and hardware reinstall the AC line retaining bracket.
11. RECHECK ALL YOUR WORK
